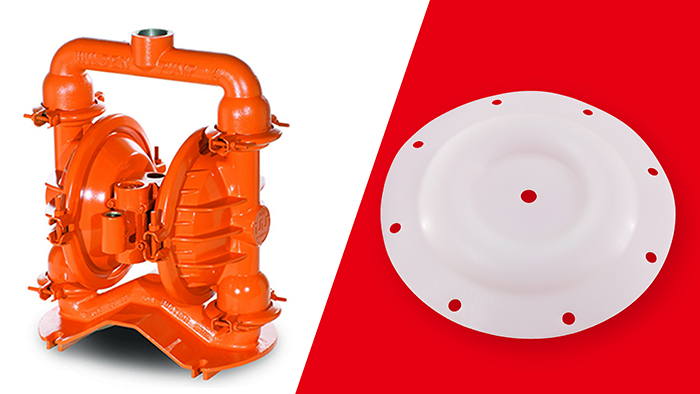

威爾頓氣動隔膜泵是一種以氣壓為動力，通過隔膜泵腔內的膜片來實現吸入和排出液體的泵。東晟油封告訴您膜片是威爾頓氣動隔膜泵的核心部件之一，它的質量和性能直接關系到泵的使用壽命和泵的工作效率。因此，選擇合適的膜片材料和正確的維護保養方法對于威爾頓氣動隔膜泵的使用非常重要。

一、膜片材料的選擇

威爾頓氣動隔膜泵膜片材料一般有聚四氟乙烯、氯丁橡膠、氟橡膠等幾種。不同的材料有不同的優缺點，需要根據具體情況選擇。

1.聚四氟乙烯膜片油封

聚四氟乙烯膜片具有優異的耐腐蝕性、耐高溫性、耐磨損性和耐老化性，可以在-20℃至150℃的范圍內使用。由于聚四氟乙烯的化學穩定性很高，因此可以在處理腐蝕性液體和高溫液體時使用。但是，聚四氟乙烯膜片的彈性較差，容易變形和破裂，且價格較高。

2.氯丁橡膠膜片油封

氯丁橡膠膜片具有良好的耐油性、耐磨性、耐老化性和耐熱性，在-30℃至100℃的范圍內使用。氯丁橡膠膜片彈性好，不易變形，價格相對較低。但是，氯丁橡膠膜片在處理高濃度酸、堿、溶劑等強腐蝕性介質時容易老化，使用壽命較短。

3.氟橡膠膜片油封

氟橡膠膜片具有良好的耐腐蝕性、耐高溫性、耐磨損性和耐老化性，在-20℃至150℃的范圍內使用。由于氟橡膠的化學穩定性很高，因此可以在處理腐蝕性液體和高溫液體時使用。但是，氟橡膠膜片的彈性較差，容易變形和破裂，且價格較高。

因此，根據不同的介質和工況要求，選擇合適的膜片材料是非常重要的。

二、膜片油封的故障分析及處理方法

1.老化

膜片老化是威爾頓氣動隔膜泵常見的故障之一。隨著膜片使用時間的增加，其彈性會逐漸降低，變硬變脆，容易破裂或變形。膜片老化的主要原因是氧化、光照、熱、酸、堿等介質的侵蝕。

處理方法：定期更換膜片，避免使用過期或存放不當?shù)哪て?，同時保持泵的清潔和維護，避免介質對膜片的侵蝕。

2.破裂

膜片油封的破裂可能是由于介質的沖擊或過載引起的。當介質的壓力超過膜片所能承受的極限時，膜片就會破裂。

處理方法：定期檢查膜片的狀況，及時更換破損的膜片，避免介質過載或壓力過高。

3.變形

膜片油封的變形可能是由于介質的溫度或壓力變化引起的。當介質的溫度或壓力超過膜片所能承受的極限時，膜片就會發生變形，從而影響泵的工作效率。

處理方法：避免介質溫度或壓力過高，選擇合適的膜片材料，定期檢查膜片的狀況，及時更換變形的膜片。

三、膜片的生產工藝和質量控制

威爾頓氣動隔膜泵膜片油封生產工藝和質量控制非常重要，直接關系到產品的質量和性能。

1.材料采購

威爾頓氣動隔膜泵的膜片生產需要采購優質的原材料，如聚四氟乙烯、氯丁橡膠、氟橡膠等。在采購過程中，需要對材料進行嚴格的檢驗和評估，確保材料的質量符合產品的要求。

2.生產工藝控制

在膜片的生產過程中，需要控制各個環節的工藝參數，如溫度、壓力、時間等，以確保產品的一致性和穩定性。同時，需要對每個生產批次進行質量檢查和測試，確保產品符合相關標準和要求。

3.產品檢驗

威爾頓氣動隔膜泵膜片油封需要進行嚴格的產品檢驗和測試，包括外觀檢查、尺寸檢查、彈性測試、壓力測試等。只有通過嚴格的產品檢驗和測試，才能確保產品的質量和性能。

四、膜片的維護保養技巧

1.清洗

在泵的使用過程中，膜片油封可能會受到介質的污染或沉積物的堆積，影響其使用壽命和工作效率。因此，需要定期清洗膜片，避免介質對膜片的侵蝕和污染。

2.更換

膜片的使用壽命有限，一般需要定期更換。在更換膜片時，需要選擇合適的膜片材料，并按照正確的安裝方法進行更換，以確保產品的質量和性能。

3.保養

威爾頓氣動隔膜泵膜片油封需要定期進行保養，如涂抹防腐劑、加油、檢查密封等。定期保養可以延長膜片的使用壽命和泵的工作效率。

總之，威爾頓氣動隔膜泵的膜片是該泵的核心部件之一，選擇合適的材料、正確的維護保養方法和嚴格的。

Wilton pneumatic diaphragm pump is a type of pump that is powered by air pressure and uses the diaphragm inside the diaphragm pump chamber to suction and discharge liquids. The diaphragm is one of the core components of the Wilton pneumatic diaphragm pump, and its quality and performance are directly related to the pump's service life and work efficiency. Therefore, selecting appropriate diaphragm materials and correct maintenance methods is crucial for the use of Wilton pneumatic diaphragm pumps.

1、 Selection of Diaphragm Materials

The diaphragm materials of Wilton pneumatic diaphragm pumps generally include polytetrafluoroethylene, chloroprene rubber, fluororubber, and other types. Different materials have different advantages and disadvantages, which need to be selected according to specific situations.

1. PTFE membrane

PTFE membranes have excellent corrosion resistance, high temperature resistance, wear resistance, and aging resistance, and can be used in the range of -20 ℃ to 150 ℃. Because of its high chemical stability, polytetrafluoroethylene can be used to treat corrosive liquids and high-temperature liquids. However, polytetrafluoroethylene membranes have poor elasticity, are prone to deformation and rupture, and are more expensive.

2. Neoprene diaphragm

Neoprene rubber membranes have good oil resistance, wear resistance, aging resistance, and heat resistance, and can be used in the range of -30 ℃ to 100 ℃. Neoprene rubber membranes have good elasticity, are not easily deformed, and are relatively inexpensive. However, chloroprene rubber membranes are prone to aging and have a shorter service life when dealing with highly corrosive media such as high concentrations of acids, alkalis, and solvents.

3. Fluorine rubber diaphragm

Fluorine rubber membranes have good corrosion resistance, high temperature resistance, wear resistance, and aging resistance, and can be used in the range of -20 ℃ to 150 ℃. Due to the high chemical stability of fluororubber, it can be used in the treatment of corrosive liquids and high-temperature liquids. However, fluororubber membranes have poor elasticity, are prone to deformation and rupture, and are more expensive.

Therefore, it is very important to choose appropriate membrane materials based on different media and operating conditions.

2、 Fault Analysis and Handling Methods of Diaphragm

1. Aging

Diaphragm aging is one of the common faults in Wilton pneumatic diaphragm pumps. As the usage time of the membrane increases, its elasticity will gradually decrease, become hard and brittle, and it is easy to crack or deform. The main reason for membrane aging is the erosion of media such as oxidation, light, heat, acid, and alkali.

Treatment method: Regularly replace the diaphragm, avoid using expired or improperly stored diaphragms, and keep the pump clean and maintained to avoid medium erosion of the diaphragm.

2. Rupture

The rupture of the diaphragm may be caused by the impact or overload of the medium. When the pressure of the medium exceeds the limit that the diaphragm can withstand, the diaphragm will rupture.

Solution: Regularly check the condition of the membrane, replace damaged membranes in a timely manner, and avoid medium overload or high pressure.

3. Deformation

The deformation of the diaphragm may be caused by changes in temperature or pressure of the medium. When the temperature or pressure of the medium exceeds the limit that the diaphragm can withstand, the diaphragm will deform, thereby affecting the working efficiency of the pump.

Solution: Avoid excessive medium temperature or pressure, choose suitable diaphragm materials, regularly check the condition of the diaphragm, and replace deformed diaphragms in a timely manner.

3、 Production process and quality control of membranes

The diaphragm production process and quality control of Wilton pneumatic diaphragm pump are very important, directly related to the quality and performance of the product.

1. Material procurement

The production of membranes for Wilton pneumatic diaphragm pumps requires the procurement of high-quality raw materials, such as polytetrafluoroethylene, chloroprene rubber, fluororubber, etc. During the procurement process, strict inspection and evaluation of materials are required to ensure that their quality meets the requirements of the product.

2. Production process control

In the production process of the diaphragm, it is necessary to control the process parameters of various links, such as temperature, pressure, time, etc., to ensure the consistency and stability of the product. At the same time, quality inspection and testing are required for each production batch to ensure that the product meets relevant standards and requirements.

3. Product inspection

The diaphragm of Wilton pneumatic diaphragm pump requires strict product inspection and testing, including appearance inspection, dimensional inspection, elasticity testing, pressure testing, etc. Only through strict product inspection and testing can the quality and performance of the product be ensured.

4、 Maintenance Techniques for Diaphragms

1. Cleaning

During the use of the pump, the diaphragm may be contaminated by the medium or accumulate sediment, affecting its service life and work efficiency. Therefore, it is necessary to regularly clean the membrane to avoid medium erosion and contamination of the membrane.

2. Replacement

The service life of the diaphragm is limited and generally requires regular replacement. When replacing the diaphragm, it is necessary to choose the appropriate diaphragm material and follow the correct installation method to ensure the quality and performance of the product.

3. Maintenance

The diaphragm of Wilton pneumatic diaphragm pump needs regular maintenance, such as applying anti-corrosion agents, adding oil, and checking the sealing. Regular maintenance can extend the service life of the diaphragm and the efficiency of the pump.

In short, the diaphragm of the Wilton pneumatic diaphragm pump is one of the core components of the pump, and the selection of appropriate materials, correct maintenance methods, and strict
